Parking Lot Lighting Design Guide Using LED Floodlights
By Lighting Engineering Team, MVS Lighting — outdoor lighting manufacturer with 5 production lines and 15+ years of outdoor lighting experience, serving global industrial and infrastructure projects. Last updated: 2026-11
Home > LED Flood Lights > Parking Lot Lighting Design Guide
The goal of parking lot lighting design is not simply to make the lot “bright enough” — it is to provide a safe, uniform and visually comfortable environment for both vehicles and pedestrians at night.
Many parking lot lighting complaints after installation are not caused by poor-quality fixtures. They are caused by design decisions made before installation — ignoring illuminance uniformity, pole layout or glare control.
A well-designed plan typically has to achieve several goals at once: better nighttime visibility, lower safety risk, no dark zones, glare control and lower long-term operating cost. For commercial complexes, industrial parks, logistics centers, hospitals and hotel parking lots, good lighting design usually matters more than simply raising fixture wattage.
For the full selection framework across project types, see the Complete LED Flood Light Guide.
Table of Contents
- Recommended Lux Levels & Uniformity Ratio
- Pole Spacing & Fixture Quantity
- Choosing LED Floodlights for Parking Lot Projects
- Parking Lot Lighting Layout and Pole Placement
- Matching Photometric Distribution to Pole Position (Type IV vs Type V)
- Beam Angle and Light Distribution
- How to Improve Uniformity and Reduce Dark Spots
- Glare Control and Driver Safety
- Smart Parking Lighting Application
- Common Parking Lot Lighting Design Mistakes
- Information Needed Before Starting a Design
- FAQ
- Final Thoughts
Recommended Lux Levels & Uniformity Ratio
Many parking lot owners assume brighter is always better. In practice, uniformity matters just as much as raw brightness.
| Area | Recommended Illuminance | Uniformity Ratio (Avg:Min) |
|---|---|---|
| General Parking Area | 10–20 lux | 4:1 |
| Commercial Parking Area | 20–30 lux | 4:1 |
| Main Driveways | 20–50 lux | 4:1 |
| Entrances / Exits | 30–50 lux | 4:1 |
| High-Security Zones | 50+ lux | Up to 10:1 (site-dependent) |
These are common commercial design targets, not a substitute for the standard that applies to your site. Illuminance and uniformity requirements differ between IES RP-20 (Lighting for Parking Facilities), local codes and tender specifications, and some of them state uniformity as max:min rather than avg:min. Always confirm the governing document and its definitions before finalizing a design.
Uniformity matters as much as average lux. At a ratio of 4:1 (average-to-minimum), the darkest point on the lot is no more than four times dimmer than the average. If one area is much brighter than the next, drivers’ visual adaptation is disrupted, which reduces — not improves — safety.
For lux and foot-candle conversion and the lumen method, see the Floodlight Lux Guide.
Pole Spacing & Fixture Quantity Formula
Once target lux and uniformity are set, pole spacing follows a simple rule:
Pole Spacing = 2–3 × Mounting Height
For an 8-meter pole, spacing typically falls between 16 and 24 meters. Parking lots generally call for a tighter spacing-to-height ratio than open-area or yard lighting, because uniformity requirements for driver and pedestrian safety are stricter.
As a rough reference, a mid-sized commercial lot (around 3,700 m² / 40,000 sq ft) typically needs 8–12 fixtures in the 150W–200W range, depending on pole height and layout. Always verify the final count against a lighting simulation for the specific site.
For the mounting height logic, see the Mounting Height Guide. For the full spacing formula and other site types, see the Pole Spacing Guide; for a quantity method, see How Many Flood Lights Do I Need.
Choosing LED Floodlights for Parking Lot Projects
LED floodlights have become the standard solution for parking lot lighting. When selecting fixtures, wattage alone isn’t the right starting point — these parameters matter more:
- Luminous flux (lumens) — the fixture’s actual light output, independent of wattage. For wattage methodology across applications, see the Wattage Guide.
- Luminous efficacy (lm/W) — higher efficacy delivers the same brightness at lower energy use.
- Light distribution type — the right distribution improves both coverage and uniformity.
- IP rating and surge protection — parking lots are exposed to the weather long-term. A sound baseline is IP66 or higher, IK08 or higher and 10kV surge protection; see IP Rating for Outdoor LED Flood Lights and Surge Protection (SPD) Ratings Explained.
- Color temperature — most commercial parking lots use 4000K or 5000K, keeping good visibility without an overly harsh effect. See the Color Temperature Guide.
For lots with security cameras, verify vertical illuminance at key points such as entrances and gates, not just horizontal ground-level lux — cameras depend on light reaching vertical surfaces like faces and license plates.
Once the design parameters are confirmed, the Parking Lot Floodlight Buying Checklist for Contractors walks through how to compare and select a specific product. If you are replacing metal halide fixtures, see the Metal Halide to LED Conversion Guide.
Parking Lot Lighting Layout and Pole Placement
Pole layout is one of the most critical parts of parking lot lighting design. Even high-quality floodlights produce significant dark zones if the layout is wrong. Pole height follows the same logic as other floodlight applications — see the Mounting Height Guide.
Common layouts:
- Single-side layout — suits narrower parking areas.
- Dual-side layout — suits medium-to-large lots.
- Central layout — suits large, open parking areas.
A well-matched pole height and spacing reduces the total number of fixtures while improving uniformity.

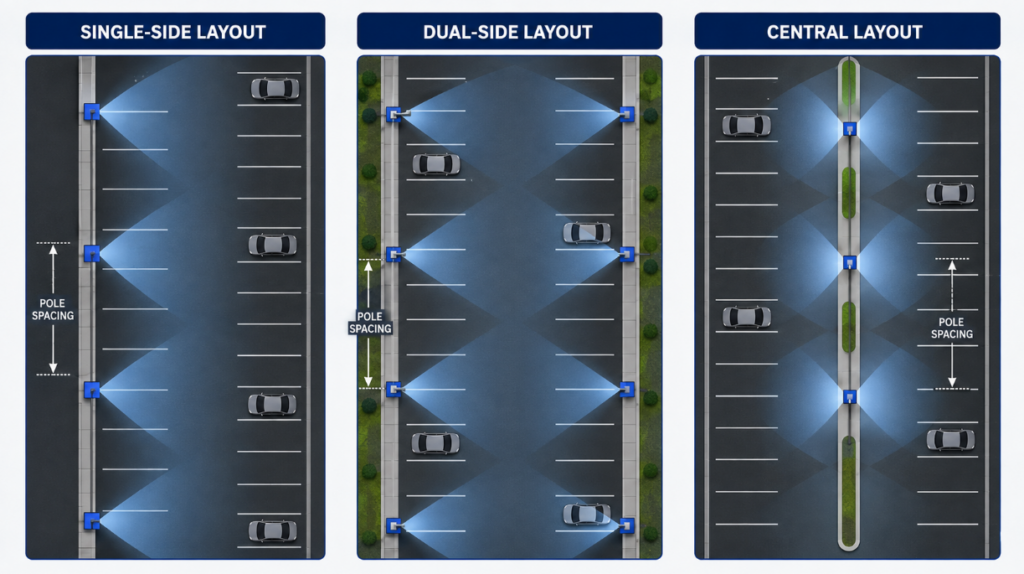

[Image: pole layout diagram — alt text: “Parking lot LED floodlight pole layout diagram showing single-side, dual-side and central arrangements”]
Matching Photometric Distribution to Pole Position (Type IV vs Type V)
Which layout works best also depends on the fixture’s photometric distribution, not just where the pole sits. In North American parking lot projects this class of fixture is commonly called an “Area Light,” and the two most common distribution types are Type IV and Type V.
Type IV is asymmetric — light is thrown mainly forward from the pole and spreads side to side, with relatively little light behind the fixture. It typically suits:
- The edge of a parking lot
- Perimeters near buildings
- Positions close to a store or property boundary
- Any location where light spilling behind the pole is undesirable
A Type IV fixture at the lot’s edge puts more usable light on the parking area and reduces spill into neighboring buildings, storefront windows or beyond the property line.
Type V is generally more symmetric — light spreads outward in a roughly even pattern in all directions — making it better suited to poles in the interior of the lot.
For larger lots, combining types by pole position is usually more effective than one type everywhere:
- Type IV at the lot perimeter
- Type V at interior poles
- Wattage and fixture count adjusted by pole spacing and target illuminance
This is typically easier to balance for uniformity than a single type across the site, and it reduces spill beyond the boundary.
Type IV/V describes the horizontal distribution pattern (where light spreads relative to the pole). Beam angle, covered next, describes how tightly that light is focused — the two work together when selecting a fixture.
Beam Angle and Light Distribution
Higher poles typically call for narrower beams; lower poles need wider beams to keep area coverage. This applies within whichever Type IV or V pattern you chose for a given pole position.
A beam angle that is too narrow tends to create hotspots; one that is too wide can reduce effective illuminance across the target area. Select beam angle together with pole height, spacing, lot size and target lux — never on its own. For the NEMA classification and selection formula, see the Beam Angle Guide.
How to Improve Uniformity and Reduce Dark Spots
Poor distribution — not insufficient brightness — is the most common issue in parking lot projects. Dark zones are typically caused by:
- Excessive pole spacing
- Incorrect beam angle selection
- Poorly positioned fixtures
- Insufficient fixture quantity
Improvement methods:
- Optimize pole layout — arrange poles strategically to improve coverage.
- Adjust mounting height — height directly affects coverage area.
- Select the right light distribution — improves light utilization.
- Run a lighting simulation — verifying the design in DIALux or similar before installation identifies problems early and reduces the cost of later changes, especially on medium-to-large lots.

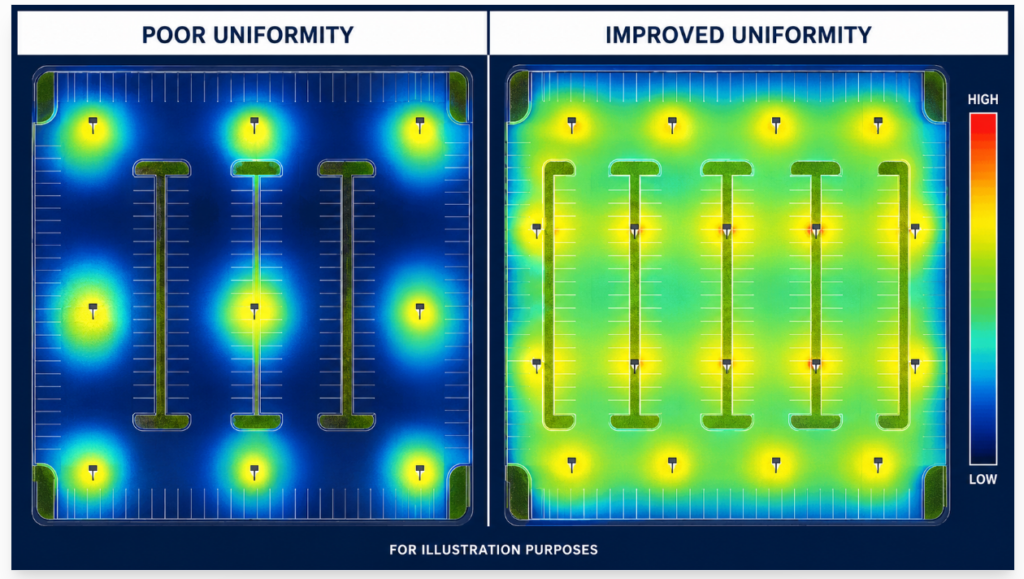

[Image: uniformity simulation before and after optimization — alt text: “Parking lot lighting uniformity simulation showing dark spots before layout optimization and improved uniformity after optimization”]
Glare Control and Driver Safety
Parking lot lighting must be bright enough but glare-free. Excessive glare impairs a driver’s ability to see their surroundings — particularly at entrances/exits, turning areas and mixed pedestrian-vehicle zones.
Effective glare control measures:
- Adjusting installation angle
- Selecting appropriate light distribution
- Improving illuminance uniformity
- Avoiding direct fixture exposure in driver sightlines
Flat Mounting Helps Control Uplight and Glare
In many North American parking lot projects the Area Light fixture is installed at or near a level (horizontal) mounting angle, without noticeably tilting the head upward. The main purposes are to:
- Reduce uplight
- Control distant glare
- Lower the impact on surrounding buildings
- Direct more light onto the parking surface
- Help meet light-pollution and site-boundary requirements
“Flat mounting always controls glare” is not an absolute rule. Actual glare performance still depends on optical design, mounting height, wattage, distribution type and viewing direction. Before finalizing fixtures, check illuminance, uniformity, glare and boundary spill with IES files and a lighting simulation.
Smart Parking Lighting Application
For larger parking facilities, lighting can be integrated with vehicle detection and zoned controls, instead of each fixture responding only when a vehicle enters its own sensor range. A linked system raises the output of several fixtures ahead of an approaching vehicle — along the lane and at intersections — then returns them to a background level once the vehicle passes, keeping the route ahead continuously lit.
| Control Mode | Linked Range | Main Purpose |
|---|---|---|
| Energy-saving mode | Small | Fewer lights activated |
| Balanced mode | Medium | Balance between visibility and energy use |
| Bright mode | Large | More lights activated ahead |
| Individual sensing | None | Only the detected fixture responds |
More advanced systems can integrate with parking-guidance sensors or cameras, dimming unoccupied zones while pre-lighting the route toward available spaces. This adds real value on larger sites but also adds commissioning cost and complexity, so plan it alongside the base lighting design rather than retrofitting later.
MVS engineering view: the maximum energy-saving percentage shouldn’t be the only objective. Lighting only the fixture directly above a vehicle keeps energy low, but the route ahead can stay dark and uncomfortable to drive. Activating several lights in advance, tuned to actual traffic volume, is usually the better trade-off.
For dimming protocol and wiring detail, see DALI vs 0-10V Dimming for LED Flood Lights.
Common Parking Lot Lighting Design Mistakes
- Focusing only on wattage — wattage does not equal brightness. A lower-wattage, higher-efficacy fixture with the right distribution can outperform a higher-wattage one poorly matched to the site.
- Ignoring uniformity — local over- and under-lighting are equally problematic; an acceptable average lux can hide dangerous dark pockets between poles.
- Excessive pole spacing — spacing beyond the 2–3× mounting-height guideline leads to significant dark zones even when the average lux target is technically met.
- Ignoring glare — fixtures aimed into driver or pedestrian sightlines reduce comfort and safety, however bright the site measures on paper.
- Ignoring environmental conditions — coastal, high-temperature and high-humidity sites accelerate fixture degradation and need higher IP/IK ratings and surge protection than a standard inland site.
Information Needed Before Starting a Parking Lot Lighting Design
To develop an accurate plan, prepare the following in advance:
| Item | Details |
|---|---|
| Site dimensions | Length, width, total area |
| CAD drawings | Preferred, if available |
| Pole height | New installation or existing poles |
| Illuminance requirements | Standard or high-security level; governing standard |
| Control method | On/off, timer or dimming |
| Environmental conditions | High temperature, coastal, humid, etc. |
This lets a lighting engineer complete accurate product selection and simulation. For writing these into a tender document, see the LED Flood Light Specification Template.
FAQ
What wattage LED floodlight is suitable for parking lots? Most projects use roughly 150W–300W fixtures, with lower wattage for low poles and small lots, depending on pole height and target illuminance. See the Wattage Guide for the full selection logic.
What pole height is typical for parking lot lighting? Larger commercial lots commonly use 8- to 10-meter poles; smaller lots use lower poles. Height should be set together with spacing and fixture distribution.
Is brighter always better for parking lot lighting? No. Uniformity — for example 4:1 average-to-minimum or better, where the project specification uses that measure — generally matters more than simply raising brightness.
Should I use Type IV or Type V distribution for my parking lot? Type IV suits pole positions at the lot’s edge or near property boundaries, since it throws light forward with minimal spill behind the fixture. Type V suits interior poles, since its distribution is more symmetric. Larger lots often combine both by pole position.
What information is needed for a parking lot lighting design? Site dimensions, pole information, illuminance requirements and control preferences are the most important baseline details.
Do I need a lighting simulation before installation? For any project beyond a small lot, a DIALux or equivalent simulation is recommended to verify lux distribution and uniformity before finalizing the design.
Final Thoughts
There is no universal parking lot lighting design — the right approach depends on lot size, security requirements and layout constraints, verified against the governing illuminance and uniformity requirements rather than generic wattage assumptions.
