Our 300W LED street light is engineered for expressways, large highways, and infrastructure projects requiring 14–18m mounting heights — the top of our streetlight wattage range. Premium drivers, IP65/IK09 housing, and -40°C to +55°C operating capability ensure stable performance for government tenders and large-scale EPC contracts.
IP65 waterproof housing — withstands heavy rain, dust intrusion, coastal humidity
IK09 impact resistance — protects against vandalism and accidental shocks on public roads
Wide temperature capability -40°C to +55°C — supports extreme winter and summer climates
Corrosion-resistant body — suited for ports, tunnels, and coastal/chemical-exposure environments
Multiple dimming options (0–10V / DALI / Timer) — flexible energy-saving schedules
Modular internal design — flexible driver, optics, and installation configuration
150 lm/W, NICHIA/LUMILEDS/CREE chips, 30°/60°/90°/120° beam options, CRI ≥70, die-cast aluminum housing. Suited for bridges, ports, road junctions, and logistics hubs.

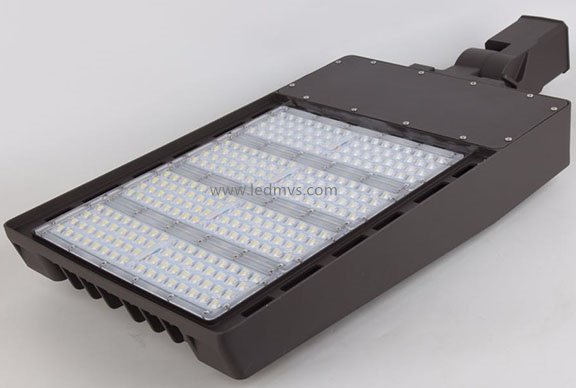

150 lm/W, 80°×150° beam distribution, CRI ≥70, 512 LEDs, 10.5kg die-cast body with enhanced anti-corrosion capability. Suited for wide-coverage roadway lighting, industrial parks, and stadium-adjacent areas.
A municipal lighting project in Qingdao, China selected 198 units of MVS 300W LED street lights for an Energy Management Contract (EMC) renovation. The project required more than replacing the existing fixtures: the customer also needed a communication solution that could support centralized lighting management and improve operation and maintenance efficiency.
Each 300W LED street light was connected through LTE Cat.1 communication. The system supported remote control, collection of lamp operating data, fault alarm notifications, energy-saving strategies, and scheduled switch-on and switch-off based on a locally stored control strategy.
Each 300W LED street light was configured with Philips LED chips and a Mean Well driver. The LTE Cat.1 solution required no additional communication wiring, helping simplify installation during the municipal lighting renovation. It also supported the integration of different sensors, leaving room for future system expansion.
By combining 300W LED street lights with remote status monitoring and fault notifications, the project was designed to reduce inspection costs and improve maintenance response efficiency.
| 300W LED Street Light Project Configuration | |
|---|---|
| Product | 300W LED Street Light |
| Quantity | 198 units |
| Project Location | Qingdao, China |
| Project Type | Municipal lighting EMC renovation |
| Communication Solution | LTE Cat.1 |
| Remote Control | Supported |
| Lamp Status Data Collection | Supported |
| Fault Alarm Notification | Supported |
| Energy-Saving Strategy | Supported |
| Scheduled Switching | Local switch-on and switch-off strategy |
| Installation Advantage | No additional communication wiring required |
| Expansion Capability | Supports integration with different sensors |
| LED Chips | Philips |
| Driver | Mean Well |
| Why 300W Was Selected | To combine high-output municipal road lighting with LTE Cat.1 remote management functions |
| Wattage | Recommended Road Type | Typical Pole Height | Coverage | Typical Applications |
|---|---|---|---|---|
| 200W | Main roads and highways | 10–14 m | Wide coverage | Highways, ports, and industrial zones |
| 300W Current Model | Large highways and expressways | 14–18 m | Very wide coverage | Expressways, large infrastructure projects, and high-mast installations |

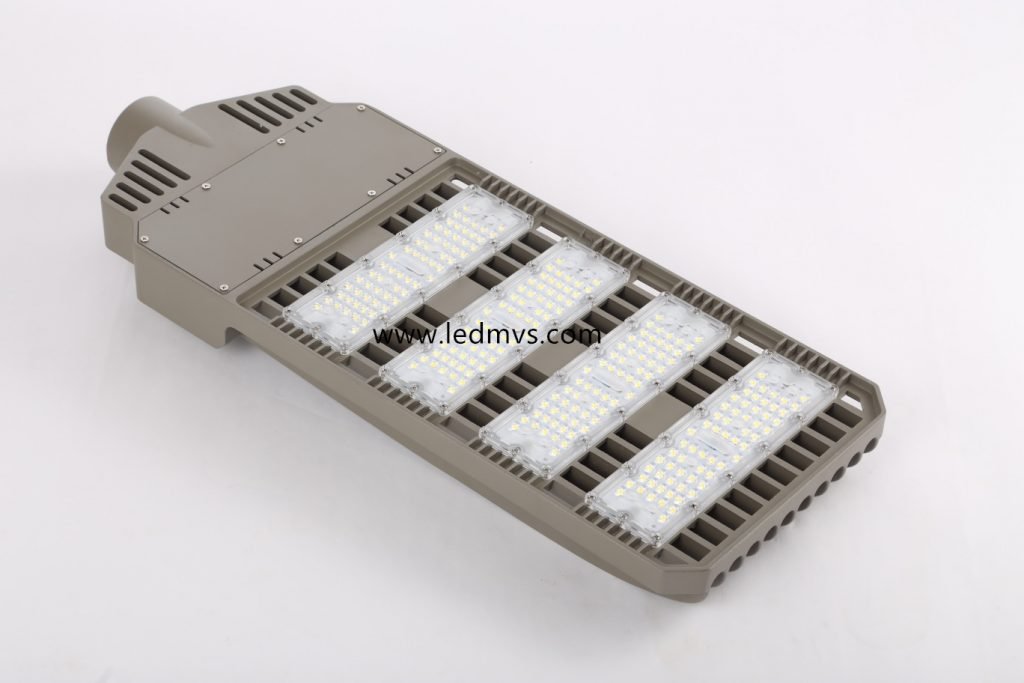

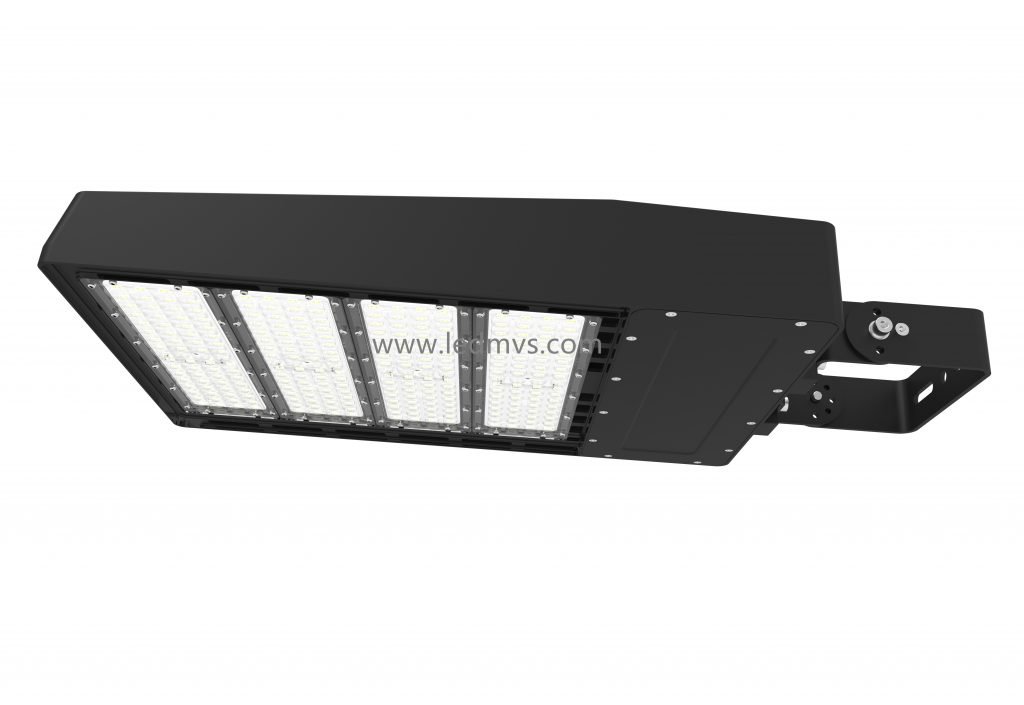

| Specification | MVS-SL300A | MVS-SL300B |
|---|---|---|
| Power | 250W / 300W | 210-300W |
| Luminous Efficacy | 150 lm/W | 140 lm/W |
| CRI (Color Rendering Index) | ≥70 | ≥70 |
| Beam Angle | 90° * 120° / 80° * 150° | 80° * 150° |
| Voltage Range | 85–277V | 85–277V |
| LED Chips | Philips, Cree | Philips, Cree |
| Driver Options | Meanwell, Philips, Inventronics | Meanwell, Philips, Inventronics |
| LED Quantity | 256 pcs | 512 pcs |
| Weight | 9.6 kg | 10.5 kg |
| Applications | Industrial, Roads, Parking Lots, Sports Venues | Urban Roads, Highways, Tunnels, Ports, Logistics |
Choose our 300W streetlight for high-efficiency outdoor lighting supported by premium LED chips, durable housing, and a reliable 5-year warranty. Designed for municipal roads, highways, bridges, ports, and industrial areas, it delivers long-lasting, stable illumination for demanding large-scale projects.
Contact us today to get a tailored 300W streetlighting solution for your application.
CE and CB certified. ISO 9001 quality management. EMC and LVD compliant drivers.
Q: What are the main benefits of the 300W street light?
A: Up to 150 lm/W efficacy, 50,000+ hour lifespan, and a 5-year warranty for large-scale outdoor applications like roads, bridges, ports, and industrial areas.
Q: What makes it suitable for large outdoor projects?
A: IP65 waterproof and IK09 impact-resistant housing built for extreme weather, heavy rain, dust, and snow.
Q: Can it be used across different outdoor settings?
A: Yes — municipal roads, highways, industrial zones, ports, tunnels, and stadiums, with multiple beam angle options and a modular design.
Q: Does it support smart control?
A: Yes — 0-10V and DALI dimming, with smart-city system integration available.
Q: How is it installed?
A: Modular design supports pole, wall, and bracket mounting; our team provides full technical support for complex installations.
Q: What certifications does it have?
A: CE, RoHS, CB, and ISO9001.
Q: Is 300W the largest streetlight you offer?
A: 300W is the top of our standard streetlight wattage range (up to 18m pole height). For larger high-mast or fully custom infrastructure projects, see our Project Grade LED Streetlight line.
