Outdoor Field Lighting

Football Field Lighting Solutions

Uniform Field Coverage for Training and Competition

Football field lighting must maintain clear visibility across a large playing area while controlling shadows and glare for players, referees and spectators. Field dimensions, pole height, mounting positions and the required competition level all affect the final fixture configuration.

MVS supplies IP65 and IK10 LED floodlights with high-output optical options, optional DALI or DMX512 control and a 5-year warranty. IES files and DIALux simulations are available to verify illumination, uniformity and aiming positions before installation.

GET A QUOTE
Field Lighting Priorities

Key Football Lighting Requirements

A football field requires more than high-output fixtures. The system must carry light over long distances while maintaining suitable visibility across the centre, goal areas, sidelines and corners.

01

Long-Distance Coverage

Tall poles and large field dimensions require optics that can deliver useful light to distant areas without concentrating excessive brightness close to the poles.

02

Field Uniformity

Overlapping beam distributions help reduce dark zones between poles and maintain consistent visibility as players move across different areas of the field.

03

Player Glare Control

Fixture aiming must limit direct glare when players look across the field or upward to track the ball. Higher output cannot compensate for unsuitable aiming positions.

04

Broadcast Performance

Professional venues may require higher color rendering, controlled flicker and stronger vertical illumination to support clear HD or 4K camera images.

i

One Beam Angle Is Rarely Enough

Large football fields often require a combination of optical distributions. Different fixtures can cover near, middle and far field zones from the same pole structure.

Preliminary Design Reference

Football Field Lighting Selection Guide

The required lighting level and system configuration depend on whether the field is used for community activity, regular training, professional competition or broadcast events.

Training Grounds 200–500 lux

Typical planning range for training, school and general club facilities.

Professional Venues 500–1500 lux

Higher lighting levels may apply to professional and broadcast football fields.

Typical Pole Arrangement 4–6 poles

Common planning range with mounting heights of approximately 15–30 metres.

Field Usage Planning Priority Optical Requirement Additional Consideration
Community and School Fields Safe general visibility with controlled installation and operating costs. Broad, overlapping distributions for practical full-field coverage. Timer or scheduled switching around evening usage.
Training and Club Fields Improved uniformity for regular practice, coaching and organised matches. A combination of beam angles for near, middle and far field zones. Dimming modes for training, matches and maintenance.
Professional Competition Higher illumination, controlled glare and stronger vertical visibility. Project-specific optics and aiming positions verified by simulation. Higher color rendering and stable driver performance.
Broadcast Football Fields Camera-ready horizontal and vertical illumination with strict uniformity. Precision distributions designed around camera and player sightlines. Low-flicker performance for HD or 4K recording.

Important: These figures are preliminary planning references. Final requirements must follow the field dimensions, competition level, local standards, tender specifications and broadcast conditions where applicable.

MVS Project References

Football Field Lighting Project Examples

These projects show how fixture power, quantity, pole height and beam distribution change according to the size and objectives of each football field.

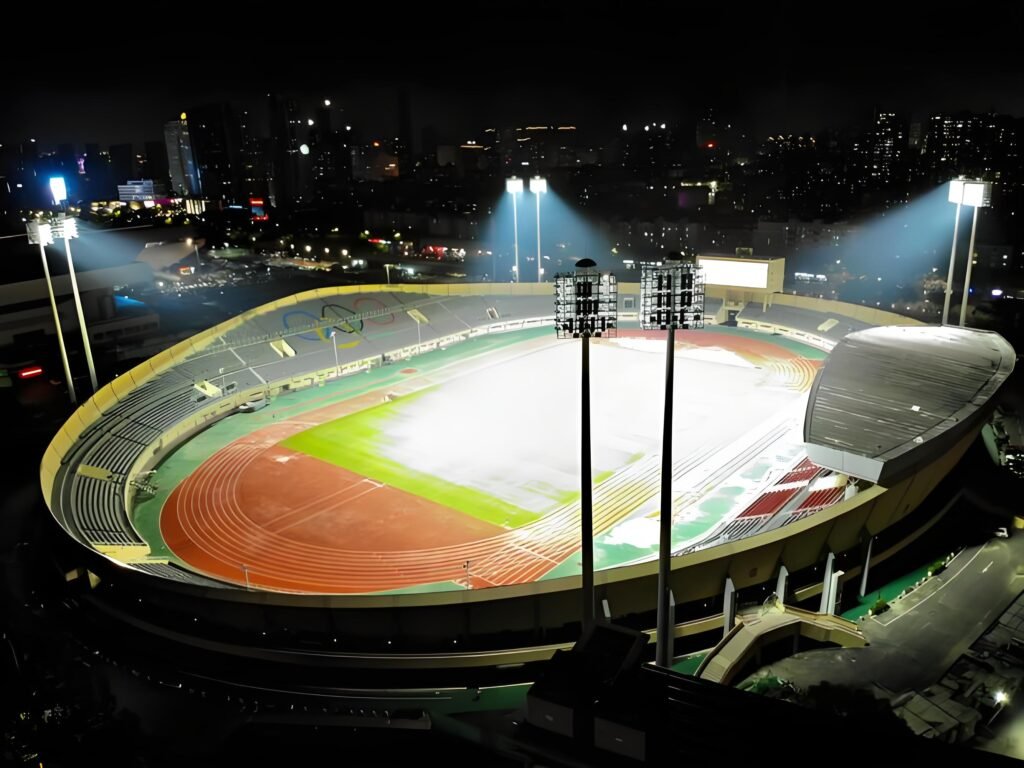

Football Field Retrofit

Zhejiang Football Field Project

A mixed-power floodlight configuration was used to cover different throwing distances and field zones within the same project.

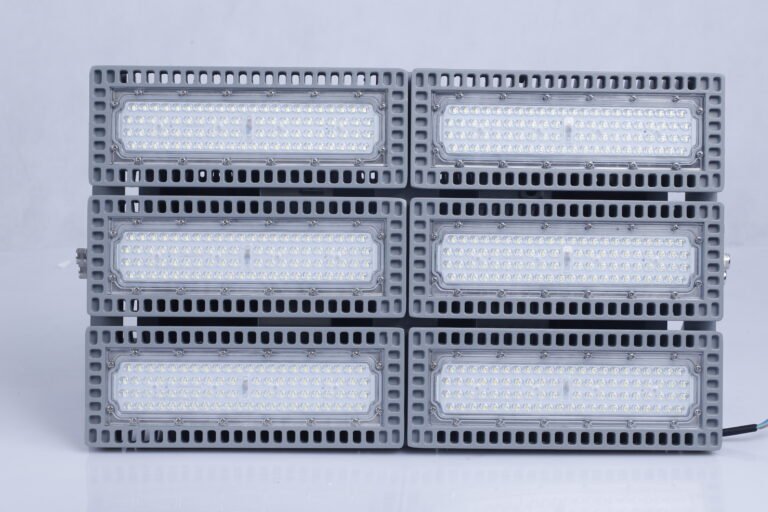

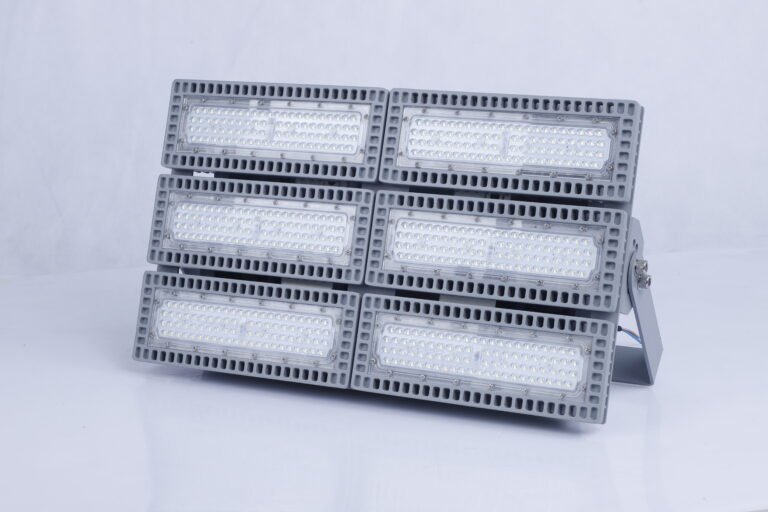

500W Floodlights 82 units

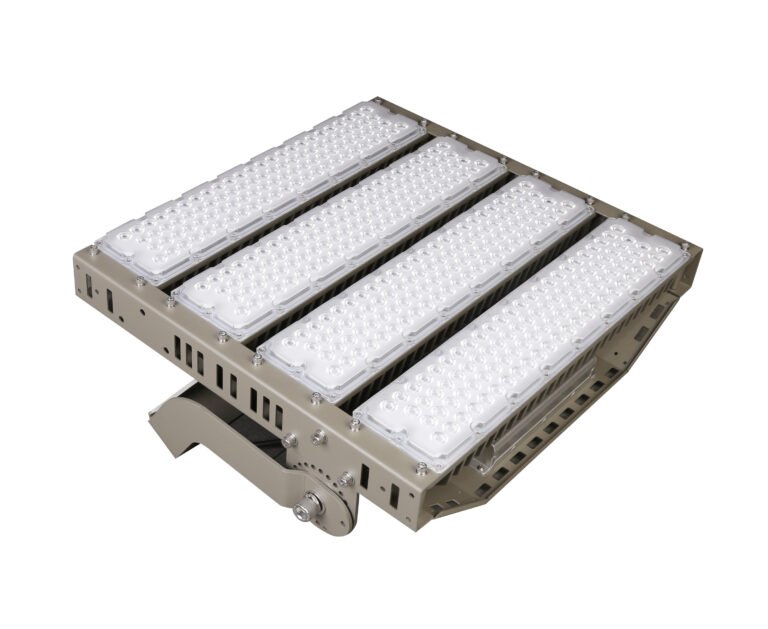

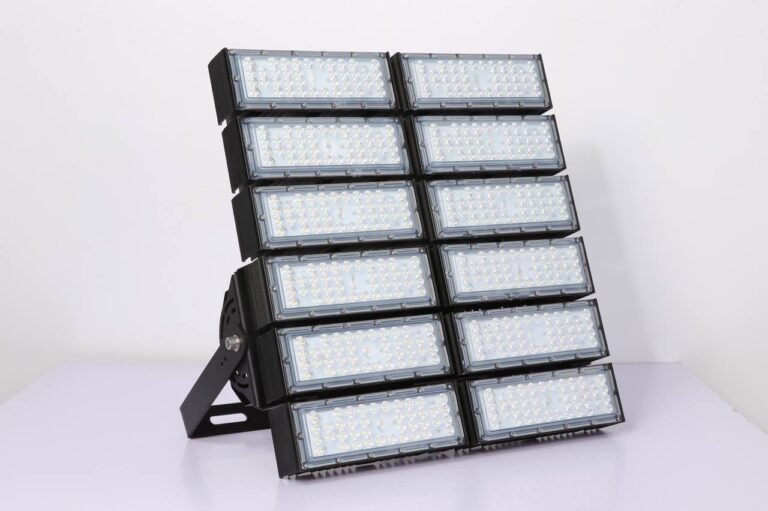

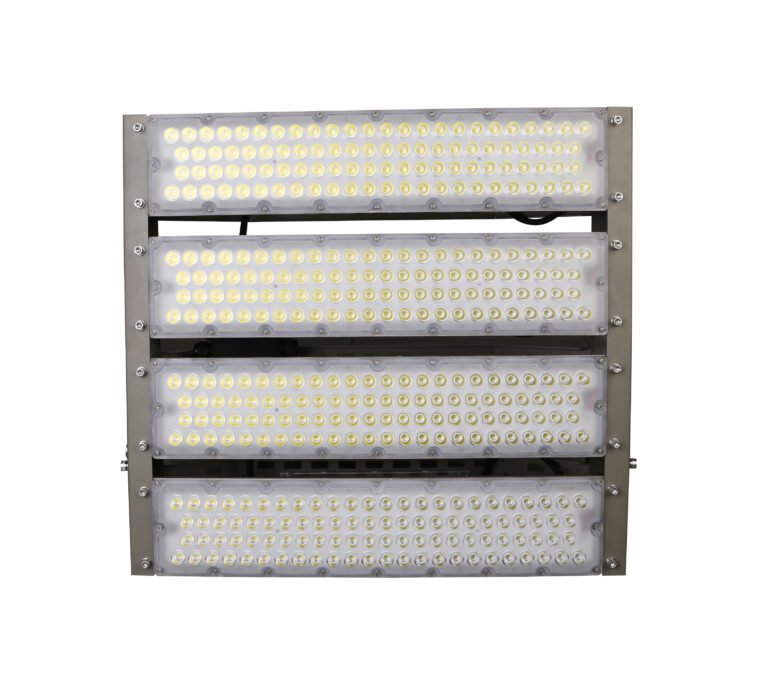

1000W Floodlights 54 units

Configuration Approach

  • Multiple output levels were used instead of applying one fixture wattage across the entire field.
  • Higher-output fixtures supported longer-distance illumination from tall mounting positions.
  • The final arrangement was planned around field zones and required coverage.
Lighting Upgrade

Guangzhou Football Field Project

The original 200W lighting configuration was upgraded to 400W floodlights to improve field illumination from existing mounting positions.

Mounting Height 15 metres
Beam Angle 60°
Original Power 200W
Upgraded Result ≥380 lux

Configuration Approach

  • The upgrade considered the existing 15-metre mounting height.
  • A 60-degree distribution was selected for the required coverage.
  • The completed configuration achieved at least 380 lux for this field layout.
Project note: These configurations apply to their respective field layouts. Fixture quantities and wattages should not be copied directly to another project without reviewing field dimensions, pole positions, target illumination and optical requirements.
Frequently Asked Questions

Football Field Lighting FAQs

Practical answers for buyers, contractors and project teams planning lighting for football training grounds and competition fields.

What illumination level suits a football field?

Training and general-use football fields commonly use a preliminary planning range of approximately 200–500 lux. Professional and broadcast venues may require approximately 500–1500 lux or more, depending on the applicable standard and competition level.

How many lighting poles are normally needed for a football field?

Many football fields use approximately 4–6 lighting poles with mounting heights of around 15–30 metres. The actual number depends on the field dimensions, available pole positions, required uniformity and target illumination.

Does football field lighting need to meet broadcast requirements?

Broadcast requirements apply when professional matches will be recorded or televised. These projects normally require higher horizontal and vertical illumination, stronger uniformity, suitable color rendering and controlled flicker for HD or 4K cameras.

What protection rating suits football field floodlights?

IP65 and IK10 provide a practical baseline for outdoor football field fixtures exposed to rain, dust and impact risk. Final protection requirements should reflect the installation environment and project specification.

Can one beam angle cover an entire football field?

Usually not. Large fields often require multiple optical distributions to illuminate near, middle and far zones from the same pole structure. The final beam combination should be verified through a lighting simulation.

Can MVS simulate a football field layout before ordering?

Yes. MVS can prepare DIALux simulations and provide IES files based on the field dimensions, pole locations, mounting heights and required lighting level. This helps verify coverage, uniformity, fixture quantity and aiming positions before installation.

Recommended Product Series

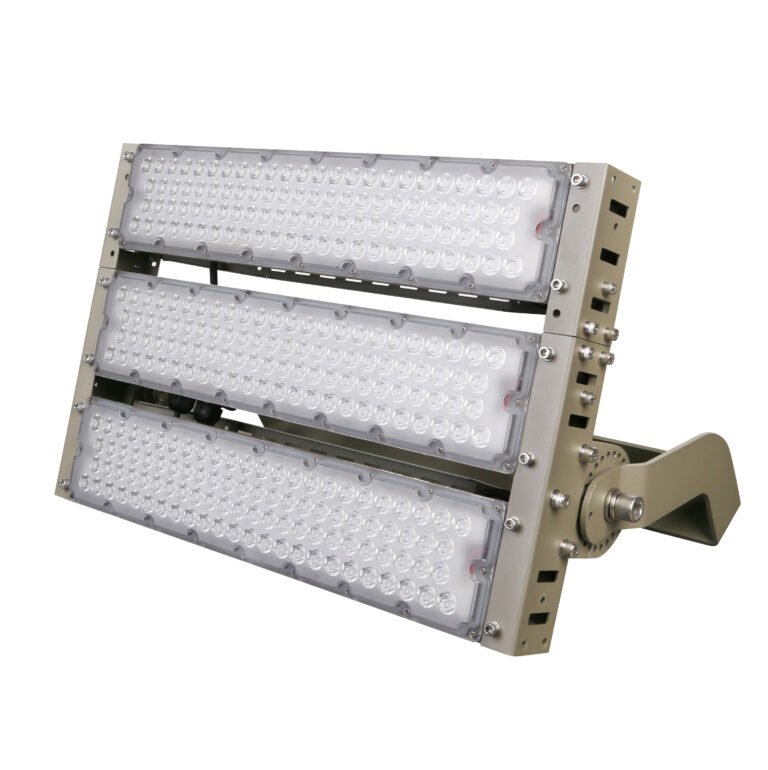

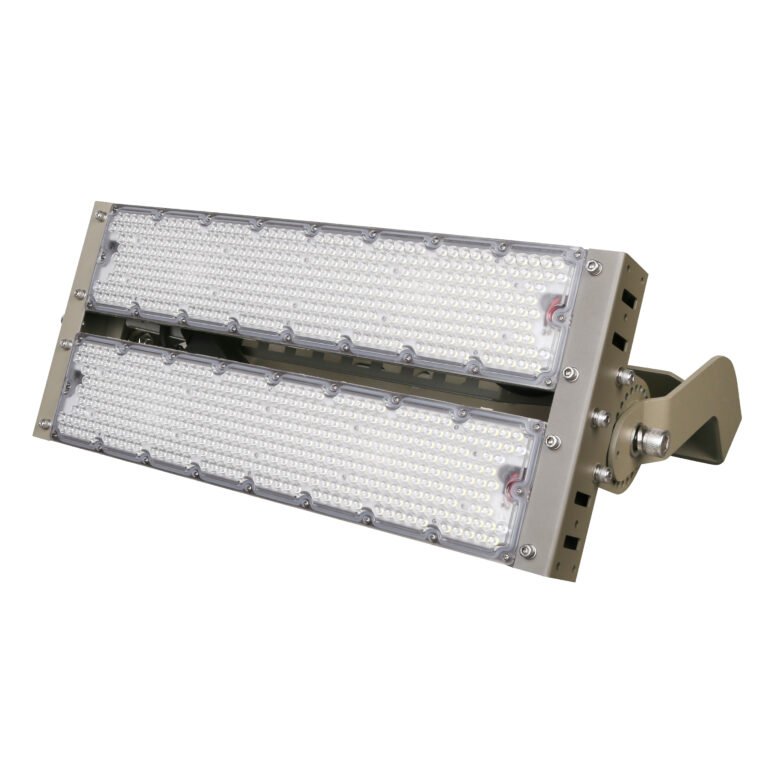

Find the Right LED Floodlight

Compare MVS high-output LED floodlights for football field projects, including multiple wattages, precision optical distributions and smart control options. The suitable configuration should be confirmed from the field dimensions, pole height, target illumination and competition level.

  • Up to 1000W options
  • Multiple beam distributions
  • IP65/IP66 configurations
  • DALI and DMX512 options
  • IES files and 5-year warranty
View LED Floodlight Series →
Related Project Resources

Explore Related Football Lighting Resources

Review practical football field projects or compare the requirements of larger stadium and sports venue applications.

Project Case Study

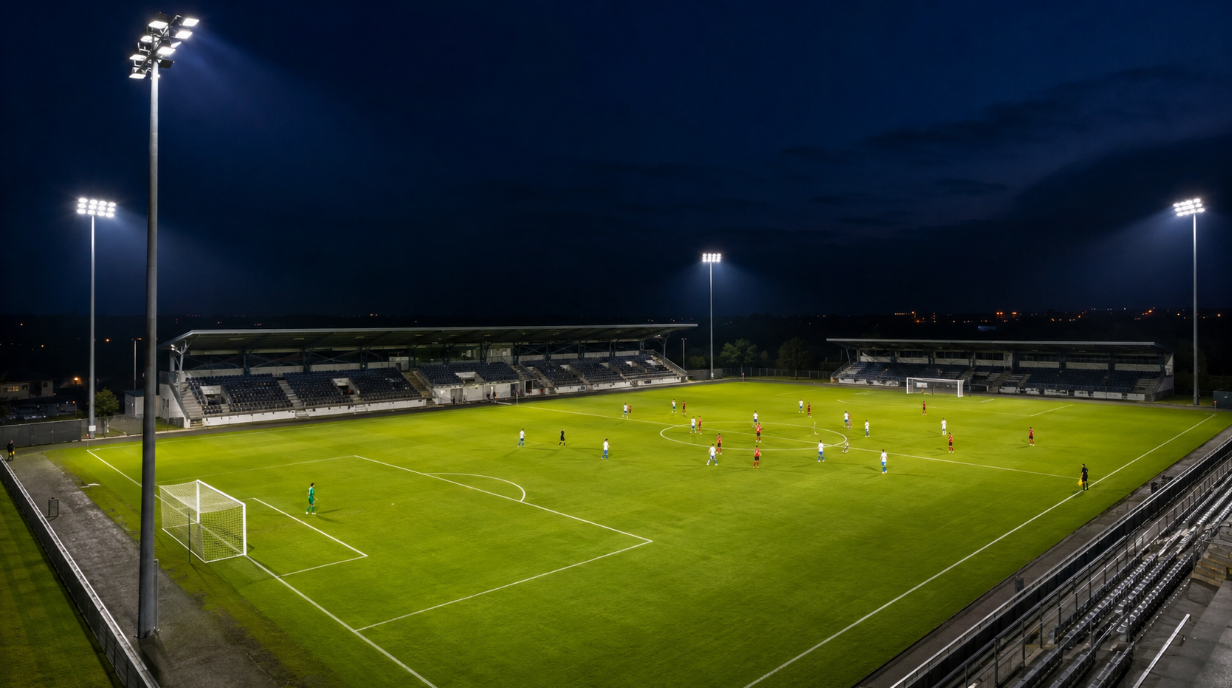

Stadium and Football Field Projects

Review practical fixture combinations, mounting conditions and lighting results from completed field projects.

Read the case studies →
Related Solution

Stadium Lighting

Explore high-mast lighting requirements for larger spectator venues, professional competitions and multi-sport events.

View stadium lighting →
Solution Category

Sport Lighting Solutions

Return to the main category to compare lighting solutions for other sports fields, courts and recreational venues.

Explore sport lighting →
