Pole Height
8–12 m
A practical mounting range for fixtures installed on the center island or around the roundabout perimeter.
Roundabouts need even illumination from every approach angle, not only along one direction of travel. MVS roundabout fixtures use wide, uniform beam distribution with IP65/IK10 protection to provide reliable all-angle visibility for drivers and pedestrians.
Intersection Planning Reference
Roundabout lighting should provide balanced visibility from every approach direction. Mounting position, illumination level, output, and beam distribution must be coordinated to reduce dark zones and control glare around the complete intersection.
Pole Height
8–12 m
A practical mounting range for fixtures installed on the center island or around the roundabout perimeter.
Illumination
20–30 lux
A typical reference level for recognizing vehicles, pedestrians, road boundaries, and traffic movements from multiple directions.
Recommended Power
100–200W
Suitable output depends on roundabout diameter, mounting position, pole height, traffic volume, and required illumination.
Beam Distribution
Wide / Symmetric
Wide, balanced distribution supports all-angle visibility instead of concentrating light along one straight travel direction.
Protection Level
IP65/IK10
Durable protection against rain, dust, external impact, and demanding public-road operating conditions.
Product Selection
Roundabout lighting requires wider and more balanced optical distribution than conventional straight-road lighting. Fixtures should provide clear visibility around the complete intersection without producing excessive glare at individual approach angles.
MVS provides project-grade streetlights with configurable wattages, symmetric beam options, durable outdoor protection, and smart-control compatibility for center-island and perimeter-mounted installations.
Compare suitable models and project configurations in our LED Street Light Series .
Project Questions
Practical answers for engineering contractors, municipalities, distributors, and procurement teams planning roundabout and multi-direction intersection lighting.
Vehicles enter and leave a roundabout from several directions. Light must therefore remain uniform at every approach angle rather than being concentrated along one straight direction of travel.

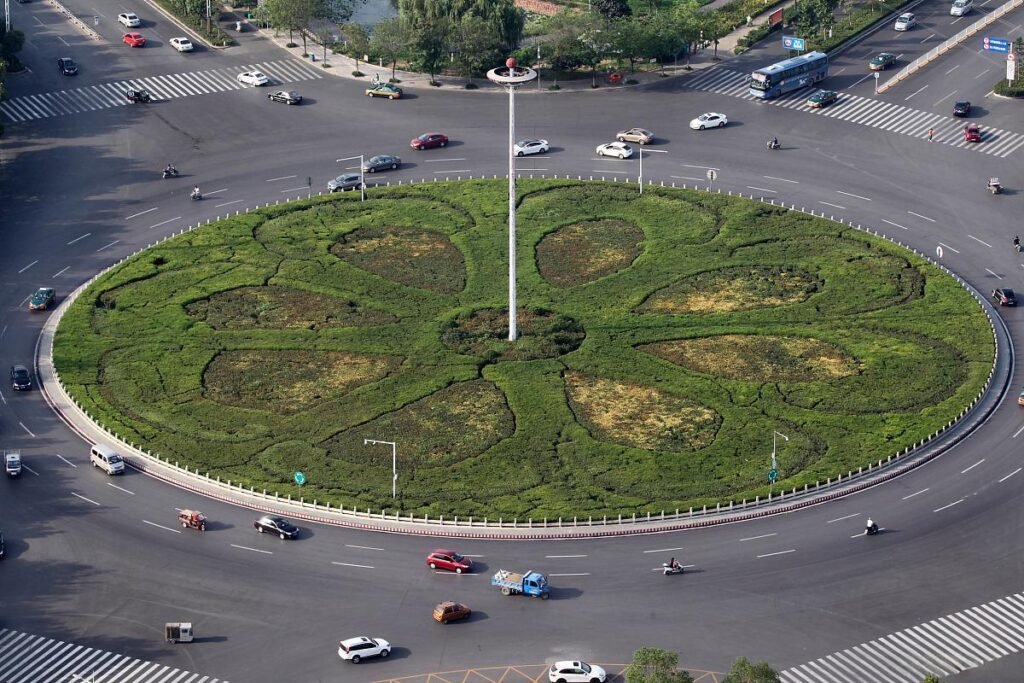

Fixtures may be installed on a tall pole within the center island or on perimeter poles around the roundabout. The final arrangement depends on roundabout diameter, road geometry, visibility requirements, and local design standards.
A practical reference range is 20–30 lux, similar to many municipal-road applications. However, the illumination must be distributed around the complete roundabout to support all-angle visibility.
IP65/IK10 provides durable protection against rain, dust, and external impact. Strong impact resistance is particularly valuable for center-island installations located close to moving vehicles.
