IP Rating for Outdoor LED Flood Lights: IP65 vs IP66 vs IP67 Explained

Table of Contents

By Lighting Engineering Team, MVS Lighting — outdoor lighting manufacturer with 5 production lines and 15+ years of outdoor lighting experience, serving global industrial and infrastructure projects. Last updated: 2026-11

Home > LED Flood Lights > IP Rating for Outdoor LED Flood Lights


Every outdoor LED floodlight spec sheet lists an IP rating, but the number alone doesn’t tell you whether a fixture is right for your site. IP65, IP66 and IP67 are the three ratings you’ll see most often on commercial floodlights, and the difference between them comes down almost entirely to water, not dust.

This guide explains what the IP numbers mean, what changes in practice between IP65, IP66 and IP67 for floodlight applications, and how to match the rating to your project without overpaying for protection you don’t need.

For the full selection framework, see the Complete LED Flood Light Guide or How to Choose the Right LED Flood Light.

Table of Contents

  1. How to Read an IP Rating
  2. IP65 vs IP66 vs IP67: What Actually Changes for Floodlights
  3. Recommended IP Rating by Application
  4. IP Rating ≠ Surge Protection
  5. IP Rating ≠ Impact Rating (IK)
  6. IP Rating ≠ Lifespan Guarantee
  7. What to Check Before You Buy
  8. IP Spec Mistakes We See in Real RFQs
  9. FAQ
  10. Conclusion

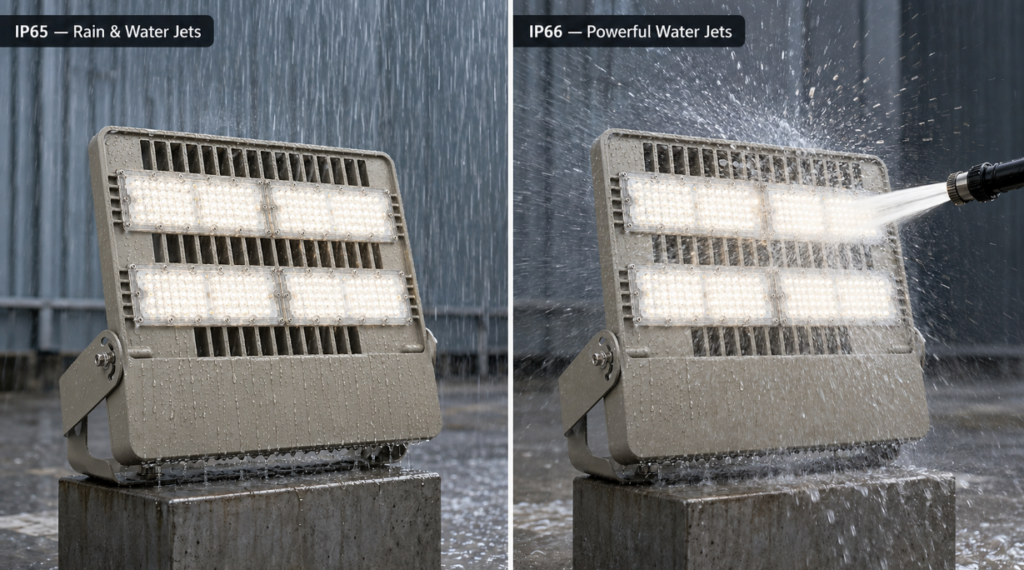

[Image: IP65 floodlight in rain vs IP66 floodlight under a high-pressure water jet — alt text: “MVS modular LED floodlight tested in rain and under a powerful water jet for IP65 and IP66 comparison”]

How to Read an IP Rating

IP stands for Ingress Protection, defined in IEC 60529. The rating has two digits: the first covers protection against solid objects and dust, the second covers protection against water.

First digit — solid particle protection (0–6)

DigitProtection
0No protection
1Objects larger than 50 mm
2Objects larger than 12.5 mm
3Objects larger than 2.5 mm
4Objects larger than 1 mm
5Dust-protected — limited ingress, doesn’t affect operation
6Dust-tight — no ingress

Second digit — water protection (0–9)

DigitProtection
0No protection
1Vertically falling drops
2Falling drops up to 15° from vertical
3Spray up to 60° from vertical
4Splashing from any direction
5Water jets from any direction (low pressure)
6Powerful water jets from any direction
7Temporary immersion, up to 1 m
8Continuous immersion beyond 1 m, under conditions set by the manufacturer
9High-pressure, high-temperature jets

IP65 vs IP66 vs IP67: What Actually Changes for Floodlights

IP65, IP66 and IP67 all carry the same first digit (6) — complete dust protection. There is no practical dust-protection difference between them. The whole difference is in the second digit, which is water.

  • IP65 — protected against low-pressure water jets from any direction. This covers ordinary rain, snow and splashing, but not high-pressure washdown or hosing. It is the minimum acceptable rating for general outdoor floodlighting such as building façades, parking lots and sports areas.
  • IP66 — protected against powerful water jets from any direction. This is the step up for sites with washdown cleaning, storm-driven rain, coastal wind-blown spray or heavy industrial exposure, and the rating we recommend as the default for exposed, pole-mounted commercial projects.
  • IP67 — dust-tight and rated for temporary immersion up to 1 metre for 30 minutes. It matters for ground-level, recessed or flood-prone installations. It is generally not needed for a pole- or wall-mounted floodlight that will never realistically sit underwater.

One point that surprises buyers: IP67 does not automatically include IP66. The two tests check different things (immersion vs powerful jets). A fixture that must survive both washdown and flooding should be rated for both (written, for example, as IP66/IP67), and the test report should say so.

In practice: IP65 is acceptable for sheltered or lower-exposure sites. IP66 is the safer default for commercial pole-mounted floodlights, and the clear choice for coastal, industrial or storm-exposed sites. IP67 is worth paying for only where there is a genuine submersion or flood risk at the installation point.

Recommended IP Rating by Application

ApplicationMinimumRecommendedFull guide
Building façades, sheltered areasIP65IP65–IP66How to Choose
Parking lotsIP65IP66Parking Lot Lighting Design
Sports fields & stadiumsIP65IP66Sports Lighting Standards · Basketball Court Lighting
Coastal, industrial yards, washdown environmentsIP66IP66 (plus corrosion protection)Industrial Yard Flood Lights
Ground-level, recessed or flood-prone installationsIP67IP67 (IP66/IP67 if washed)Confirm submersion risk on site before specifying

These are typical recommendations. A tender, local code or environmental report can require more.

IP Rating ≠ Surge Protection

IP rating protects against dust and water ingress. It says nothing about voltage transients or lightning-induced surges — that is a separate specification. See Surge Protection (SPD) Ratings Explained.

IP Rating ≠ Impact Rating (IK)

IP does not describe resistance to impact either. Mechanical impact is rated separately by the IK code (IEC 62262). If the fixture is within reach of vehicles, balls or vandalism, specify IK as well as IP (see the Basketball Court Lighting Design Guide for an example).

IP Rating ≠ Lifespan Guarantee

A high IP rating keeps water and dust out, but it doesn’t guarantee long-term lumen output or driver life: a well-sealed fixture with a poor driver will still fail early. Seals and gaskets also age with heat and UV, so a rating proven on a new unit says nothing about year eight unless materials and design are good. See Why Some LED Flood Lights Last 10 Years for what actually drives lifespan.

What to Check Before You Buy

  • Confirm the rating is tested, not just claimed. Ask for the actual IP test report (laboratory, date, the exact model tested), not just a datasheet mention.
  • Check cable entry and gasket quality, not just the housing. A housing rated IP66 is only as good as its cable glands and seals; a poorly sealed cable entry defeats the rating at its weakest point. Check that the gland fits the cable diameter you will use.
  • Ask how the fixture handles pressure changes. Housings heat and cool each day; ask how the design equalizes pressure (for example a breather membrane) without letting water in.
  • Don’t assume IP rating covers corrosion resistance. For coastal or chemical-exposure sites, IP and corrosion resistance are separate specs. Ask about housing material and coating specifically.
  • Match the rating to real exposure, not the highest available option. Paying for IP67 on a fixture that will never be near standing water is money better spent elsewhere in the spec.
  • Write it into the specification. Put the IP rating, IK rating and test-report requirement in the LED Flood Light Specification Template for tenders.

IP Spec Mistakes We See in Real RFQs

  1. Requesting IP68 “to be safe” on a pole-mounted floodlight. Immersion protection is irrelevant for a fixture that will never sit in water; it usually just adds cost.
  2. Confirming the IP number without checking cable entry quality. A fixture can carry a correct IP66 rating on its housing and still leak at a poorly installed gland. The rating describes the tested unit, not necessarily every field installation.
  3. Assuming IP66 means corrosion-resistant. Coastal and chemical-exposure buyers sometimes stop at the IP number and skip housing material and coating.
  4. Specifying IP65 for a site that gets pressure-washed. IP65 is not rated for high-pressure jets. Sites with routine washdown need IP66 at minimum, or the rating is exceeded during normal maintenance, not just extreme weather.
  5. Assuming IP67 includes IP66. Check that the report covers both tests if the site needs both.

FAQ

What IP rating do I need for outdoor LED flood lights? IP65 is the minimum for general outdoor use. IP66 is recommended for most exposed commercial projects, and necessary for coastal, industrial or washdown sites. IP67 is only needed where temporary submersion is a real risk.

What’s the actual difference between IP65 and IP66? Both offer complete dust protection. The difference is water: IP65 handles low-pressure water jets (rain, splashing), while IP66 handles powerful jets (washdown, storm-driven rain, hosing).

Is IP67 better than IP66 for outdoor floodlights? Not necessarily better — different. IP67 adds temporary-immersion resistance, which matters for ground-level or flood-prone installations but is unnecessary for a typical pole- or wall-mounted floodlight. It does not automatically cover IP66 jets.

Does a higher IP rating mean a longer-lasting fixture? Not on its own. Driver quality, thermal design and lumen maintenance are separate factors that determine lifespan.

Can I use an IP65 floodlight in a coastal area? IP65 protects against rain and splashing, but coastal sites usually also involve wind-driven spray and salt exposure. IP66 plus a confirmed corrosion-resistant housing is the more reliable spec.

Do I need IK as well as IP? If the fixture can be hit by vehicles, balls or vandals, yes. IK is a separate rating for impact.

Conclusion

IP65, IP66 and IP67 offer identical dust protection — the real decision is about water exposure at your site, not picking the highest number. IP65 is the minimum for general outdoor use, IP66 is the practical default for exposed commercial projects and the choice for coastal or industrial exposure, and IP67 is worth its added cost only where genuine submersion risk exists.

Need help matching IP rating to your project? Send us your site conditions and we’ll review the specification with you. For the wider checklist, see How to Choose an LED Flood Light Manufacturer.
