Choosing an LED flood light for a real project is rarely about picking a brand. The hard part is knowing what to decide first, and in what order — so the light meets the required illumination, stays on budget, and passes acceptance without a redesign.
This guide is a step-by-step selection process. It walks you through the five decisions every outdoor lighting project comes down to, in the order an engineer actually makes them. Where a step needs detailed calculation or specifications, we link you to a dedicated guide.
👉 Want the full overview of every flood light option instead? See our Complete LED Flood Light Guide.
The 5-Step Selection Process
The most common mistake is to start with “how many watts do I need?”. Watts are the last thing you calculate, not the first. The correct order works backwards from the application:
Application → Target lux → Wattage → Optics & mounting → Specs & certification.
Get the order right and every later decision falls into place. Below is each step.
Step 1 — Define the Application
Everything starts here. The application decides the required brightness, the beam type, the mounting method, and ultimately the wattage. A 2,000 m² parking lot, a competition basketball court, and a port yard each need a completely different setup — even at the same area.
Before anything else, fix three things about your site: what activity happens there, how big the area is, and how the lights will be mounted. These three answers drive every step that follows.
For application-specific layouts and design, see the dedicated guides:
- Parking lots → Parking Lot Lighting Design
- Basketball & sports → Basketball Court Lighting · Sports Field Standards
- Warehouses & industrial → Warehouse Flood Lights
Step 2 — Set the Target Lux
Brightness is defined by illuminance (lux) on the surface — not by the wattage of the fixture. So before sizing any light, decide the lux level your application requires (for example, a parking lot and a stadium target very different levels, set by standards such as IES RP-8 and EN 12464-2).
This is the real design target. Everything downstream is calculated to hit it.
👉 For the recommended lux levels by application and how to calculate them, see the Floodlight Lux Guide.
Step 3 — Determine the Wattage
Wattage is a result, not a starting point. Once you know your target lux and area, you calculate the total lumens required, then convert to wattage based on the fixture’s efficacy. Picking a round number like “300W” without this step is how projects end up over- or under-lit.
👉 For the full wattage-by-application logic and the calculation, see the LED Flood Light Wattage Guide.
👉 To work out how many fixtures that wattage needs, see How Many Floodlights Do I Need.

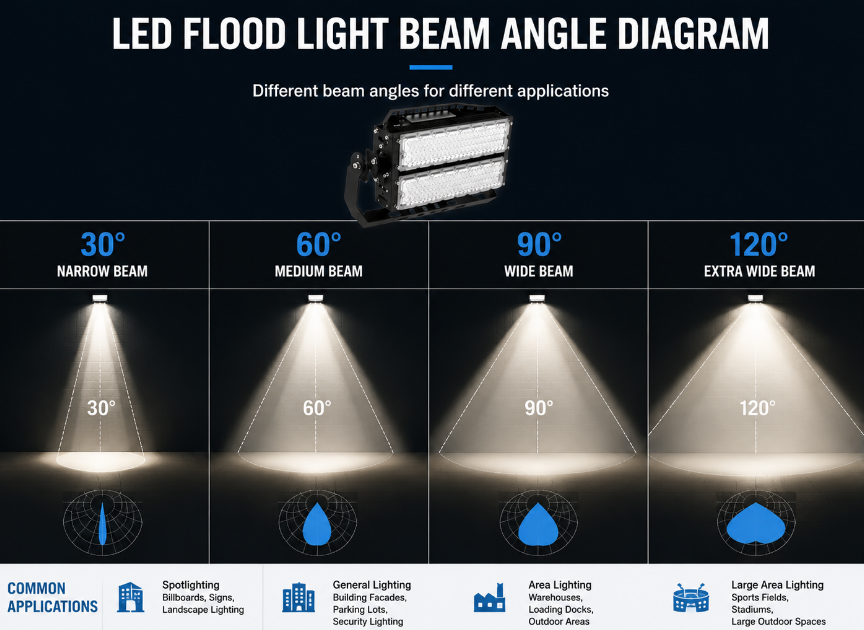

Step 4 — Choose Optics & Mounting
Beam angle and mounting height must be decided together — they jointly determine whether your light lands evenly or leaves hotspots and dark zones. A narrow beam on a low pole over-lights the center; a wide beam on a high mast spills light everywhere. Match the beam to the throw distance, then set the mounting height and spacing to keep uniformity in range.
👉 Beam angle and optical distribution → Floodlight Beam Angle Guide

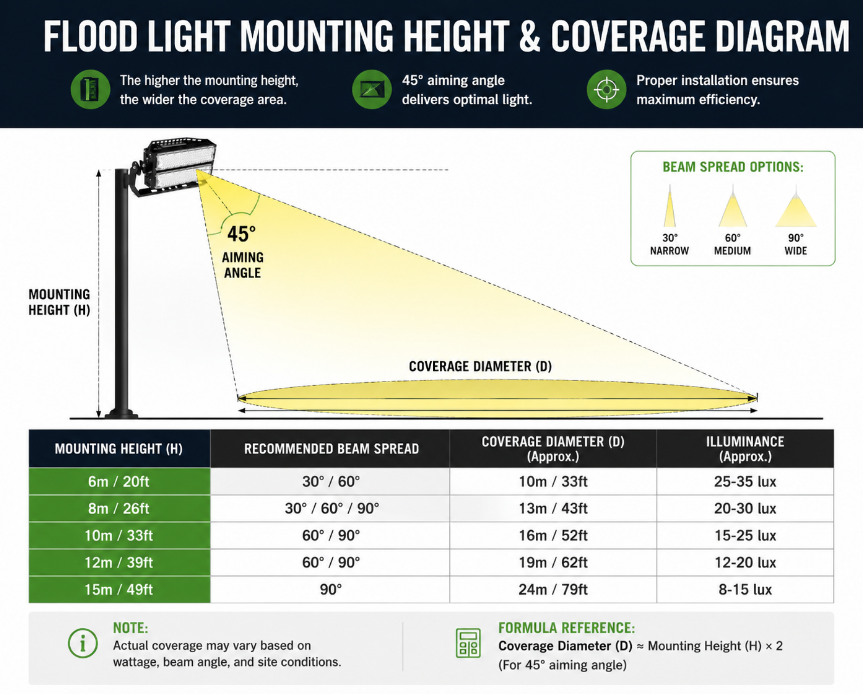

👉 Mounting height & pole spacing → Mounting Height Guide
Step 5 — Verify Specs & Certifications
Before you order, run a final check on the specifications that decide reliability and whether the project will accept the product:
- Protection: IP rating for the environment → IP Rating Guide , plus surge protection → Surge Protection Guide
- Lifespan & driver quality: what actually determines how long it lasts → Why Some Last 10 Years
- Certifications & procurement: CE / RoHS / DLC, warranty, supplier vetting → LED Flood Light Buying Guide
These details live in their own guides; at this step you just confirm each box is checked.
Common Procurement Mistakes
Even experienced buyers slip on these. Avoiding them is half of choosing correctly:
- Selecting wattage without optical design. The right total lumens with the wrong beam angle still fails the lux requirement.
- Ignoring mounting height. The same fixture at the wrong height creates hotspots or dark gaps and fails uniformity.
- Ignoring driver quality. A cheap driver is the most common cause of early failure, regardless of the LED chip.
- Comparing on unit price alone. A lower sticker price with poor efficacy costs more over the project’s life — judge total cost of ownership.
- Missing photometric files. Without IES/LM-80 files, many project owners and consultants will not approve the product.
Quick Decision Checklist
Run through these in order — if you can tick all five, your specification is sound:
- ☐ Application, area and mounting method defined?
- ☐ Target lux level set (to a recognized standard)?
- ☐ Wattage calculated back from lux, not guessed?
- ☐ Beam angle and mounting height matched for uniformity?
- ☐ IP rating, certifications and warranty verified?
